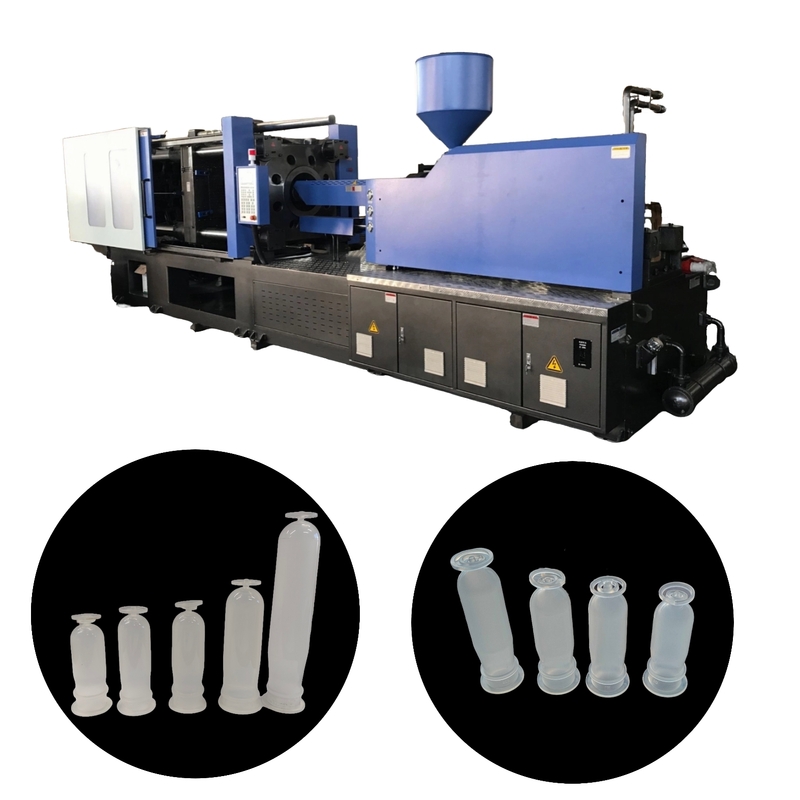

PP Preform 380 Tons Injection Molding Machine

Tepai precision machine,

Factories implement advanced scientific management, adhere to the"quality"principle, a skilled professionaland technical team,

We produced the PP preform injection molding machine from product design, raw material selection, assembly of parts, the product factory. After rigorous testing checks.The main parametersof the product, safety performance, hydraulic electrical system to achieve the advanced level in the same industry.

"TEPAl"series injection molding machine with beautiful appearance, clamping force, low noise, low energyconsumption characteristics. Products are exported to Southeast Asia, the Middle East, South America and other countries and regions, praised by customers at home and abroad. Companies adhere to the"people-oriented, customer first" business philosophy, the pursuit of first-class high-quality products, is willing towork with my colleagues new and old customers to join hands in creating brilliant tomorrow.




Technical Specification

说明

DESCRIPTION

单位 UNIT

380S-PP

国际公认型号

International size


3800-5630





螺杆直径

Screw diameter

mm

110

螺杆长度直径比

Screw L: D ratio


26: 1

理论注射容积

Theoretical shot volume

cc

4942

实际注射量

Actual shot weight(PP)

g ()

3607

射胶压力

Injection pressure

Mpa

114

注射速度

Injection speed

mm/s

122.0

螺杆行程

Screw stroke

mm

520

螺杆转速

Screw speed

rpm

100





锁模力

Clamping force

KN

3800

模行程

Clamping stroke

mm

660

连接柱内距

Space between

tie bars(W×H)

mmxmm

720x720

最小模具尺寸

Min mould dimension

mmxmm

500x500

模板最大距离

Max. daylight

mm

1470

容模量(最薄-最厚)

Mold thickness

(min.- max.)

mm

280-810

油压顶出行程

Hydraulic ejection

stroke

mm

210

油压顶出力

Hydraulic ejection force

Ton

26.4

顶出杆数

Number of ejector pins

unit

19





油压马达功率

Major motor

KW

56.5

电热量

Heating power

KW

77.81

熔胶电机功率

Melt motor power

KW

83.87

加热区

No. Of heater zones

unit

6

总功率

Ultimate capacity

KW

219.11

总电流

Current

A

299.6





油箱容量

Oil tank capacity

L

660

机械外形尺寸(LxWxH)

Machine dimensions

(L×W×H)

m×m×m

9.4x1.9x2.2

设计重量

Design weight

Ton

14.5
